Wiggling Screen And DLP Power This Volumetric POV Display

For decades, science-fiction movies have promised glowing three-dimensional objects that float in space, rotate without a headset, and patiently explain the Death Star’s weak points. Real-world display technology has usually answered with flat panels, stereoscopic glasses, or devices marketed as “holographic” after someone placed spinning LEDs inside a plastic fan.

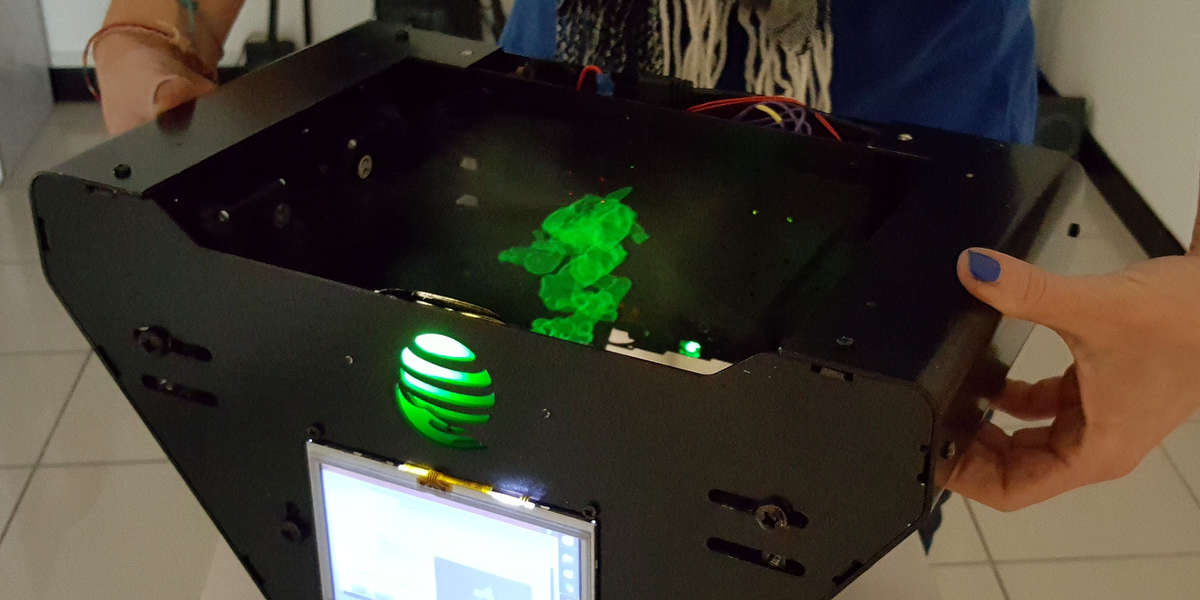

The Volumetric Visualization Device, commonly shortened to VVD, takes a more convincing approach. Instead of pretending that a flat picture has depth, it creates visible image slices at different physical positions inside a three-dimensional volume. The ingredients are surprisingly understandable: a flexible screen that moves rapidly up and down, a high-speed Digital Light Processing projector, precisely timed image slices, and enough mechanical synchronization to make a Swiss watch feel underdressed.

When those parts cooperate, the viewer perceives a complete volumetric POV display. The model can be examined from different angles, shared by several people at once, and viewed without special glasses. It is not a cinematic hologram made from free-floating light, but it is a genuine example of three-dimensional imagery occupying physical space.

What Is a Volumetric POV Display?

A conventional monitor places every pixel on one fixed plane. Even when that monitor shows an impressive 3D model, the actual light still comes from a flat rectangle. Perspective, shading, binocular disparity, and motion help the brain interpret depth, but the image itself remains two-dimensional.

A volumetric display works differently. It creates visible points, known as voxels, at locations distributed through a physical volume. A voxel is the three-dimensional equivalent of a pixel: it has an X position, a Y position, and a Z position rather than merely sitting somewhere on a flat grid.

In a swept-volume display such as the VVD, the complete object is divided into many thin cross-sections. A moving surface passes through the display volume while the projector presents the appropriate cross-section at each position. The visual system integrates those rapidly changing slices into one apparently continuous object.

The term persistence of vision, or POV, is commonly used to describe this effect. Human perception does not process each illuminated slice as a completely isolated event. When images are presented rapidly enough, the sequence appears stable and continuous rather than becoming a frantic stack of blinking pancakes.

How the Wiggling Screen Creates Real Depth

A Flexible Membrane Sweeps Through Space

The most visually unusual part of the VVD is its projection surface. A thin flexible membrane is stretched across a frame and connected to articulated arms. Stepper motors move the mechanism so the membrane oscillates vertically at high speed.

At any instant, the membrane occupies a particular height inside the display volume. The projector illuminates it with the horizontal layer of the model that belongs at that height. A moment later, the screen moves to another position and receives the next layer. Repeating this process fast enough builds the appearance of a complete three-dimensional object.

The movement is difficult to see during normal operation because the membrane sweeps so quickly. High-speed footage recorded at around 1,000 frames per second reveals what is actually happening: the supposedly solid model is a sequence of bright cross-sections landing on a constantly moving diffuser.

This arrangement provides physical depth rather than merely simulated depth. A point representing the top of a building appears higher in the volume because its corresponding slice is projected when the membrane is physically higher. A point near the base appears lower because it is illuminated at another stage of the sweep.

Why a Membrane Instead of a Rotating Blade?

Many volumetric displays use rotating screens, spinning LED panels, or helical surfaces. Rotation can generate a broad cylindrical viewing volume, but fast-moving rigid components introduce engineering and safety challenges. Bearings produce vibration, balancing becomes critical, and an unprotected spinning part can become considerably less charming when a finger approaches it.

The VVD uses reciprocating motion instead. Its flexible membrane travels along one axis rather than rotating around a central shaft. This keeps the basic optical geometry understandable and allows the projector to present straightforward horizontal slices.

The approach still involves moving parts, of course. Membrane tension, arm alignment, motor spacing, resonance, and long-term material fatigue all matter. The wiggling screen may look playful, but the mechanism must behave with repeatable precision thousands of times every minute.

Why DLP Technology Is the Other Half of the Trick

Micromirrors Built for Speed

A normal office projector is designed to show complete color video frames, not thousands of carefully timed binary patterns. A volumetric POV display needs a much faster optical engine because every completed 3D frame contains dozens of separate depth slices.

Digital Light Processing technology is well suited to the job. At the heart of a DLP system is a Digital Micromirror Device, or DMD. This semiconductor contains a large array of microscopic mirrors that tilt between different positions. Each mirror directs light either into the projection path or away from it, creating a bright or dark picture element.

DMDs can switch rapidly and offer precise control over projected patterns. Some industrial DLP systems can generate binary patterns at rates reaching thousands or even tens of thousands per second. That speed is enormously useful in structured-light scanning, machine vision, lithography, additive manufacturing, and experimental volumetric displays.

Thousands of Updates Become One 3D Frame

The documented VVD configuration uses a set of 96 image slices for a model. Its DLP engine operates at roughly 4 kHz, while the complete volumetric image refreshes at approximately 20 Hz. Those figures illustrate an important rule: the projector’s pattern rate is not the same as the final 3D refresh rate.

Every volumetric frame consumes many individual projections. Increasing the number of slices improves depth resolution, but it also requires more patterns per completed volume. Adding grayscale or color information consumes additional timing capacity as well. The available projection bandwidth must therefore be divided among depth layers, brightness levels, colors, and refresh rate.

It is the display-engineering version of packing a suitcase: more depth resolution, richer color, and smoother motion all want the same limited space, and none of them believes it should have to leave its shoes behind.

Synchronization Is Where the Magic Actually Lives

The membrane and projector cannot simply operate at approximately the same speed. They must be synchronized closely enough that every slice appears at its intended physical location. If a slice is projected too early or too late, the corresponding part of the model shifts along the depth axis.

Small timing errors can produce doubled edges, wavy surfaces, unstable geometry, or an image that appears to breathe. Larger errors turn an elegant anatomical model into something resembling a skeleton viewed through gelatin.

The VVD uses motor-control hardware that can connect to the trigger input of the DLP system. This allows the mechanical motion to act as part of the timing chain. Once the system is calibrated, the projector advances through its slice sequence in coordination with the membrane’s position.

The motion profile also matters. A reciprocating mechanism generally changes speed during its travel: it slows near the ends, reverses direction, and moves fastest near the middle. Therefore, evenly spaced image slices may not correspond to evenly spaced time intervals. A reliable implementation must compensate for the actual movement of the membrane rather than assuming that it glides like an elevator operated by a particularly calm ghost.

From an STL File to a Floating Object

The display accepts ordinary 3D model data, including models stored in the STL format commonly used for 3D printing. Before projection, software processes the model into a stack of two-dimensional cross-sections.

This slicing process is conceptually similar to preparing an object for additive manufacturing. A 3D printer turns successive layers into physical material. The VVD turns successive layers into timed patterns of light.

Each slice contains the geometry intersecting one depth plane. The collection of slices is loaded into the DLP controller along with timing settings. A compact computer can manage model selection and display control, allowing the system to operate as a self-contained unit instead of remaining permanently attached to a laboratory workstation.

Models with bold surfaces, separated features, and recognizable silhouettes tend to display clearly. Extremely dense meshes, tiny details, or nearly overlapping surfaces can be harder to interpret because the display has finite spatial resolution and produces luminous, partially transparent imagery.

Why the Result Looks Different From Ordinary 3D

A well-calibrated volumetric display provides natural motion parallax. When viewers move their heads, the apparent relationships among parts of the model change as they would with a physical object. People standing around the display can also see the content from their own positions without wearing synchronized glasses.

Because the image exists across multiple physical depths, the eyes can receive more consistent focus and convergence cues than they do from conventional stereoscopic displays. A flat 3D screen may tell the eyes to converge on a virtual object in front of the panel while still requiring them to focus on the panel itself. That mismatch is one reason some viewers experience discomfort with stereoscopic media.

A volumetric image is not perfect, however. Many swept-volume systems make illuminated structures appear translucent. Light from a voxel can remain visible even when that point should be hidden behind another surface. Realistic opacity and viewpoint-dependent occlusion require more sophisticated rendering, directional optics, or controlled diffusers.

Consequently, the VVD is especially effective for models that benefit from transparent or cutaway presentation: skeletons, machinery, architectural structures, scientific data, and layered assemblies all fit the medium naturally.

Potential Applications Beyond the Science-Fiction Factor

Medical Imaging

Computed tomography and magnetic resonance imaging already produce volumetric datasets. Doctors typically inspect them as individual slices or reconstructed models on flat monitors. A volumetric display could present anatomy in a form that groups can examine from different angles without headsets.

Bone structures, vascular networks, organ relationships, and surgical plans are obvious candidates. Such a device would not replace diagnostic workstations, but it could support education, consultation, and collaborative spatial analysis.

Engineering and Product Design

Mechanical assemblies often contain components that overlap in complicated ways. Displaying a CAD model volumetrically can help a team discuss clearances, proportions, routing, and component placement. Several people can gather around the same visualization and point to the relevant area instead of passing around a headset like a ceremonial helmet.

Museums, Classrooms, and Exhibitions

A museum could present a digital reconstruction of an artifact that is too fragile, incomplete, or geographically unavailable. A science classroom could show molecular structures, planetary systems, anatomy, or mathematical surfaces. Architectural exhibits could display buildings without requiring visitors to learn complicated navigation controls.

The shared-viewing capability is important. Virtual reality is immersive, but it often isolates each participant inside an individual device. A tabletop volumetric display creates a social object that viewers can discuss together.

The Importance of an Open-Source Volumetric Display

Commercial volumetric displays exist, but high-speed optics and precision mechanics can make them expensive and difficult to study. The VVD project is notable because its creator released component information, mechanical files, firmware, assembly guidance, and documentation for an open-frame version.

The design uses a DLP LightCrafter evaluation module, NEMA-size stepper motors, a Trinamic motor controller, acrylic structural parts, mirrors in some configurations, and a compact computer for standalone control. Some original components have become difficult to obtain, particularly the high-speed projector module, but the documentation still provides a valuable starting point for researchers and experienced makers.

Open projects expose the unglamorous but essential parts of display development: calibration, frame timing, mechanical adjustment, sourcing problems, firmware, optical alignment, and the occasional component that has been discontinued precisely when somebody decides to build the project.

Hands-On Experience: What Building and Viewing the Display Teaches You

The first practical lesson is that a volumetric POV display is not one project. It is several demanding projects that have agreed to share an enclosure. The optics must be sharp, the mechanism must be repeatable, the electronics must maintain timing, and the software must prepare slices that suit the available display volume. Success depends less on one spectacular component than on getting every subsystem to stop arguing.

Mechanical calibration is likely to consume much of the early work. The membrane needs appropriate tension: too loose, and it can ripple or respond inconsistently; too tight, and it places unnecessary stress on the linkage and motors. The articulated arms must move symmetrically so the screen remains level. Even small alignment errors can tilt the projected depth planes or introduce vibration that becomes visible as fuzzy geometry.

Finding the best motor spacing and oscillation amplitude is another experiential challenge. A mechanism can work on paper yet behave differently once real parts flex, fasteners loosen, and resonances appear. Builders commonly learn to adjust one variable at a time, record the result, and resist the emotionally satisfying but scientifically unhelpful strategy of changing five settings and hoping the machine becomes frightened into cooperation.

Optical setup requires similar patience. The projected image must cover the moving membrane without spilling excessively onto the frame. Mirrors, when used, need accurate positioning. Focus must remain acceptable across the membrane’s travel, even though a projector normally expects one stationary screen. The diffuser material must scatter enough light for wide viewing angles while preserving useful contrast.

Timing calibration produces the most dramatic improvements. When the slice sequence is slightly misaligned, the model may appear stretched, doubled, or bent. Correcting the trigger phase can suddenly transform that luminous blur into a recognizable rib cage or architectural model. This is the satisfying moment when the device stops looking like an expensive vibration experiment and starts looking like a window into a small digital volume.

Viewing the display in person is also different from watching a recording. Cameras sample time using their own shutter speeds and frame rates, which can introduce flicker, dark bands, incomplete slices, or rolling-shutter distortion. Human observers may see a steadier and more convincing image than the camera captures. High-speed video does the opposite: it removes the perceptual fusion and reveals the moving membrane and individual layers.

Model choice strongly affects the experience. A skeleton works well because its structure is familiar and naturally benefits from depth. A mechanical assembly with separated components can also look excellent. A solid, photorealistic human face is more demanding because viewers expect correct opacity, smooth shading, rich color, and subtle surface detail. Volumetric hardware is very good at showing where things are, but less naturally suited to pretending every glowing voxel is opaque skin.

Audience reactions provide another useful lesson. Most people instinctively move sideways when they first see the image. They want to test whether the object maintains its shape from another angle. That physical response reveals the display’s main advantage more effectively than a specification sheet: the viewer does not merely watch a 3D effect but explores a shared spatial object.

Long-term operation raises practical concerns about membrane fatigue, motor temperature, loose fasteners, mechanical noise, and repeatable startup calibration. A prototype may demonstrate the principle beautifully while still needing engineering work before it can operate all day in a museum or classroom. Protective covers, emergency shutdown behavior, accessible replacement parts, and quieter actuation would all matter in a polished product.

Perhaps the most valuable experience is discovering how tightly time and space are connected. In this display, a timing error becomes a geometric error. A delayed projection does not merely appear late; it appears in the wrong physical layer. Once that relationship becomes intuitive, the project offers a memorable lesson in mechanics, optics, embedded control, human perception, and real-time graphicsall delivered by a screen that wiggles enthusiastically enough to make an image stand up.

Where Volumetric POV Displays Go Next

Future designs could benefit from faster and more affordable DLP hardware, closed-loop position sensing, quieter actuators, improved diffuser materials, and real-time graphics pipelines. Instead of loading a fixed stack of precomputed slices, advanced systems could render changing models, animations, sensor data, or interactive simulations continuously.

Better tracking could let the controller determine the membrane’s exact position rather than relying only on a calibrated motion pattern. Higher pattern rates could support more depth layers, brighter grayscale images, and richer color. Directional projection techniques might improve occlusion and make solid objects appear less transparent.

Recent research has also explored flexible diffusers that users can safely touch, opening possibilities for direct interaction with volumetric content. Such systems suggest a future in which people not only walk around a three-dimensional visualization but also manipulate it without controllers or head-mounted equipment.

Conclusion

The VVD demonstrates that an effective volumetric POV display does not require mysterious holographic physics. It requires a carefully controlled moving surface, a projector capable of extremely rapid pattern changes, properly sliced 3D data, and synchronization accurate enough to place light where the geometry says it belongs.

Its wiggling membrane may look delightfully improvised, yet the underlying idea is sophisticated. By projecting different layers at different physical heights, the system produces a model that can be viewed from multiple angles and shared by several observers without glasses.

The prototype also reveals why volumetric displays remain challenging. Projection bandwidth must be divided among depth, brightness, color, and refresh rate. Moving parts require calibration and maintenance. Transparency and occlusion remain difficult. Nevertheless, the result is far more than a novelty. It is a practical demonstration of how high-speed DLP projection, mechanical motion, and human perception can cooperate to turn ordinary 3D files into visible objects occupying real space.

Note: Performance figures and component details in this article describe the documented VVD prototype. Replications may require alternative projector hardware, updated electronics, and additional safety measures.

:::
