How To Do PCB Art In Eagle

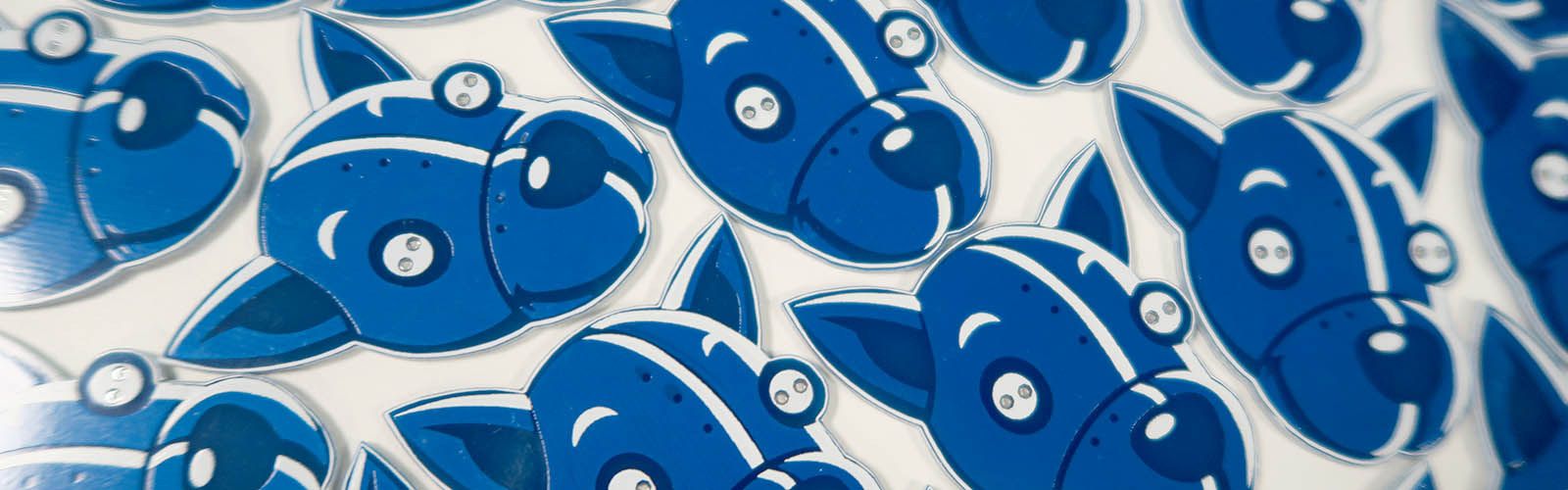

PCB art is what happens when circuit design sneaks into an art studio, grabs a cup of coffee, and refuses to leave. Instead of treating a printed circuit board as a plain green rectangle full of serious little traces, PCB art turns copper, solder mask, silkscreen, board shape, and negative space into a deliberate visual design. And yes, you can do it in Autodesk EAGLE.

Whether you want to make a custom badge, a tiny robot face, a decorative logo board, a sci-fi control panel, or a business card that quietly says, “I own a soldering iron and I know how to use it,” EAGLE gives you the tools to create functional and non-functional artwork on a PCB. The key is understanding how EAGLE layers translate into real manufactured materials.

This guide walks through how to do PCB art in Eagle, from planning your design to importing images, choosing layers, checking manufacturing rules, and exporting clean Gerber files. We will also cover practical experiences and lessons learned, because PCB art has a charming way of looking perfect on screen and then coming back from the fab house with one eyebrow missing.

What Is PCB Art?

PCB art is the creative use of printed circuit board manufacturing layers to create visual designs. Instead of relying only on ink or printed graphics, PCB artists use the physical properties of the board itself. Copper can become shiny gold lines. Solder mask can create colored backgrounds. Silkscreen can add white or black details. Exposed copper can form highlights. Cutouts can shape the entire board into an object.

In a typical PCB, these layers are used for practical purposes: copper carries electrical signals, solder mask protects the copper, and silkscreen labels components. In PCB art, those same layers become your palette. It is not exactly Photoshop. It is more like painting with manufacturing constraints, where every brushstroke must survive design rule checks and a factory process involving UV light, plating, drilling, and chemical baths. Dramatic? A little. Accurate? Very much so.

Why Use EAGLE for PCB Art?

Autodesk EAGLE has long been popular among hobbyists, engineers, and makers because it combines schematic capture, board layout, libraries, scripts, and user language programs in a relatively compact workflow. While Autodesk has been moving electronics design toward Fusion Electronics, many designers still have EAGLE files, EAGLE libraries, and muscle memory built around the classic interface.

EAGLE is useful for PCB art because it lets you directly control important board layers such as Top, Bottom, Dimension, tPlace, bPlace, tStop, bStop, tRestrict, bRestrict, Milling, and Document. It also supports scripts and ULPs, including the well-known import-bmp workflow for converting bitmap graphics into EAGLE geometry.

If you are using EAGLE today, keep one practical note in mind: Autodesk has announced that EAGLE support and availability are being phased out in favor of Fusion Electronics. The techniques in this article still matter because EAGLE files and design habits remain widely used, and many of the same layer concepts carry over into modern PCB design tools.

Understand the PCB Layers Before You Start

The secret to good PCB art in Eagle is simple: layers are everything. If you place a beautiful logo on the wrong layer, it may never appear on the finished board. That is the PCB version of writing a love letter and mailing it to your own junk drawer.

Top and Bottom Copper Layers

The Top and Bottom layers contain copper. On many prototype boards, exposed copper is finished with ENIG, HASL, or another surface finish. ENIG often creates a gold appearance, which is why PCB artists love using exposed copper for shiny accents, outlines, stars, lettering, or decorative patterns.

If copper is covered by solder mask, it may appear darker or more muted depending on the mask color. If you want the copper to shine, you generally need to create openings in the solder mask using the appropriate stop layer.

tPlace and bPlace Silkscreen Layers

In EAGLE, tPlace and bPlace are commonly used for top and bottom silkscreen. This is where you place visible printed artwork, logos, labels, icons, and decorative linework. Silkscreen is usually printed after the solder mask, so it appears on top of the board surface.

Use tPlace for artwork on the top side and bPlace for artwork on the bottom side. Do not confuse these with tDocu or bDocu. Documentation layers are helpful for your own notes, but they are usually not sent to the manufacturer as printed artwork.

tStop and bStop Solder Mask Openings

The tStop and bStop layers define where solder mask should be removed. This is slightly counterintuitive for beginners. Adding geometry to a stop layer usually creates an opening in the solder mask, exposing copper underneath.

For PCB art, this is extremely powerful. You can use copper plus solder mask openings to create metallic features. For example, if you want a golden moon on a purple board, you can place copper in the moon shape and create a matching tStop opening above it. The result is exposed copper with a shiny finish.

Dimension and Milling Layers

The Dimension layer defines the board outline. If you want your PCB art shaped like a cat, rocket, leaf, guitar pick, or suspiciously cute skull, this is where the outer shape begins. The Milling layer is used for internal cutouts, slots, or non-board-edge contours that need to be routed by the manufacturer.

Always check your manufacturer’s rules for minimum slot width, internal cutout spacing, and board outline requirements. A board shaped like a dragon sounds amazing until the fab house politely asks why its tail is thinner than their router bit.

Step-by-Step: How To Do PCB Art In Eagle

Step 1: Choose a Simple Art Concept

Start with a design that works well in limited colors. PCB art is not full-color printing unless you are using a special fabrication service. Traditional PCB art usually relies on a small visual palette: solder mask color, silkscreen color, exposed copper, covered copper, bare substrate, and board cutouts.

Good beginner projects include a logo, badge, icon, character face, geometric pattern, decorative business card, or simple wearable pendant. Avoid tiny gradients, soft shadows, and photographic detail at first. PCB manufacturing loves clean edges more than it loves delicate watercolor vibes.

Step 2: Sketch the Layer Plan

Before opening EAGLE, decide what each visual element will be made from. For example:

• Board outline: Dimension layer
• White details: tPlace silkscreen
• Gold highlights: Top copper plus tStop opening
• Dark background: solder mask color
• Hidden copper shading: copper under solder mask
• Internal holes or decorative slots: Milling layer

This planning step prevents chaos. Without it, you may end up with artwork scattered across layers like confetti after a robot wedding.

Step 3: Create or Open an EAGLE Board File

You can create PCB art as a purely decorative board or as part of a functional circuit. If the board has electronics, begin with a normal schematic and board layout. Place components, route critical traces, and make sure the circuit works before adding detailed artwork.

If the board is decorative only, you can work directly in the board editor. Draw the outline on the Dimension layer, set your grid, and define the approximate size. Use millimeters or inches consistently. Switching units mid-design is a classic way to create a badge the size of a postage stamp or a dinner plate.

Step 4: Prepare Artwork for Import

EAGLE’s import-bmp workflow works best with clean bitmap images. Convert your artwork to black and white or limited colors before importing. High-contrast images are easier to convert into useful geometry. Vector art should usually be simplified before export.

For best results, prepare the image in a graphics program first. Remove unnecessary detail, increase contrast, and resize the image close to its final board size. If your artwork contains text, use bold fonts and avoid extremely thin strokes. Tiny decorative lettering may look classy on your monitor and then vanish during manufacturing like it owes someone money.

Step 5: Use import-bmp in EAGLE

To import bitmap artwork into EAGLE, use the import-bmp ULP. In many EAGLE installations, you can run it from the command line with:

The tool converts bitmap pixels into EAGLE drawing commands. Depending on settings, it can create shapes made from wires, polygons, or other geometry. After running the ULP, EAGLE may generate a script file that places the converted image into your board.

Pay attention to scale. Bitmap imports can become too large, too small, or overly complex. If the result is wrong, it is often easier to adjust the image outside EAGLE and import it again rather than wrestling with thousands of tiny objects. That is not failure; that is wisdom wearing safety glasses.

Step 6: Put the Artwork on the Correct Layer

After importing, move or assign the artwork to the correct manufacturing layer. For printed white artwork on the top of the board, use tPlace. For exposed copper artwork, use Top copper and add matching tStop openings if needed. For bottom-side art, use bPlace, Bottom, and bStop.

Be careful with imported graphics on random or custom layers. Some imports may land on a temporary layer such as layer 200. That can be useful during editing, but it will not automatically become real manufactured artwork unless your CAM output includes it or you move the geometry to a proper layer.

Step 7: Create Copper Art

Copper art can be made with polygons, wires, and filled shapes. If you want a decorative copper area that is not connected to the circuit, isolate it carefully. Floating copper is usually acceptable for decorative boards, but on functional electronics you should consider whether it may create unwanted capacitance, antennas, shorts, or assembly confusion.

For functional boards, keep artistic copper away from high-speed signals, RF sections, sensitive analog inputs, crystal circuits, and power electronics unless you know exactly what you are doing. A beautiful copper dragon wrapped around a switching regulator may look heroic, but electromagnetic interference is not impressed by mythology.

Step 8: Use Solder Mask Openings for Metallic Effects

To expose copper, draw a shape on the copper layer and create a matching opening on tStop or bStop. The solder mask opening allows the surface finish to show. With ENIG, the exposed copper area often appears gold. With HASL, it may look silver or tin-like.

Make the solder mask opening slightly larger than the copper shape if you want to account for registration tolerance. Manufacturers have limits on how accurately solder mask aligns with copper. If your mask opening is exactly the same size as a hairline copper feature, the final result may shift slightly.

Step 9: Add Silkscreen Details

Silkscreen is excellent for line art, labels, outlines, and small decorative marks. However, every manufacturer has minimum line width and text size recommendations. Keep silkscreen strokes thick enough to survive production. Also avoid placing silkscreen over exposed pads or solderable areas, because it may be clipped by the manufacturer or interfere with soldering.

For clean PCB art, use silkscreen for high-contrast details and copper for premium-looking accents. A strong combination is solder mask background, exposed copper highlights, and silkscreen outlines.

Step 10: Shape the Board

Use the Dimension layer to define the board perimeter. Rounded corners, tabs, badge shapes, and simple silhouettes are usually manageable. For internal cutouts, use the Milling layer and confirm that the fab house supports routed slots or interior cuts.

Keep mechanical strength in mind. Very thin bridges can snap. Sharp inside corners may not machine perfectly because router bits are round. If your board is wearable, include mounting holes or slots large enough for rings, chains, clips, or lanyards.

Step 11: Run DRC Before Export

Design Rule Check is not optional. It is the stern but helpful librarian of PCB design. Run DRC using rules that match your chosen manufacturer. Look for clearance errors, mask problems, minimum width issues, unrouted airwires, overlapping shapes, and objects too close to the board edge.

For PCB art, also manually inspect the layers one by one. Turn off everything except tPlace. Then inspect Top copper. Then tStop. Then Dimension. This layer-by-layer check is one of the best ways to catch missing details before ordering.

Step 12: Generate Gerber Files

When the board looks right, use EAGLE’s CAM processor to generate Gerber files and drill files. These are the standard manufacturing files used by PCB fabrication houses. Make sure your Gerber set includes the correct copper, solder mask, silkscreen, drill, and outline layers.

After exporting, open the Gerbers in an independent Gerber viewer. Do not rely only on how the board looks inside EAGLE. The Gerber viewer shows what the manufacturer is more likely to see. This is where you catch missing silkscreen, inverted solder mask, incorrect board outlines, or decorative copper that accidentally became invisible.

Practical Example: Making a Simple PCB Badge

Imagine you want to create a small rocket-shaped PCB badge. The board will have a purple solder mask, white silkscreen stars, and gold copper flames.

First, draw the rocket outline on the Dimension layer. Use curves or short line segments to create the nose cone and fins. Next, place the main rocket body details on tPlace as silkscreen. Add windows, panel lines, and tiny stars around the rocket.

For the flame, draw copper polygons on the Top layer. Then duplicate or redraw the same flame shape on tStop so the solder mask is removed above that copper. When manufactured with a gold finish, the flame becomes metallic. Add two mounting holes near the top if it will hang from a lanyard.

Finally, run DRC, export Gerbers, and inspect the design in a viewer. If the silkscreen stars are too tiny, enlarge them. If the flame has sharp slivers, simplify the shape. PCB art rewards bold design choices.

Common Mistakes When Doing PCB Art In Eagle

Using tDocu Instead of tPlace

This is one of the most common beginner mistakes. tDocu is useful for documentation, but it usually does not print on the actual PCB. If you want visible top-side silkscreen, use tPlace.

Forgetting That Solder Mask Layers Are Negative

Solder mask layers define openings, not colored ink. If you draw on tStop, you are usually removing solder mask from that area. This is great for exposed copper effects, but confusing at first.

Making Details Too Small

PCB manufacturing has physical limits. Ultra-thin lines, tiny dots, and delicate text may disappear. When in doubt, make artwork bolder. Your future self, holding the finished board, will thank you.

Skipping the Gerber Viewer

Never skip Gerber review. EAGLE may show layers in a friendly way, but the exported manufacturing files are what matter. A Gerber viewer is your final reality check before spending money.

Ignoring the Board Edge

Keep copper and silkscreen away from the board edge unless the manufacturer specifically allows it. Routing tolerances can trim details that sit too close to the outline.

Best Practices for Better PCB Art

Use fewer, stronger shapes rather than many fragile details. Think in layers and materials. Choose a board house early so you can design around its colors, finish, minimum trace widths, solder mask rules, and silkscreen limits. Keep important art away from pads, vias, and tight component areas. Use test coupons or small prototypes before ordering a large batch.

If your PCB art is also a working circuit, prioritize electrical reliability first. Route power and signals properly, maintain clearances, and avoid turning decorative copper into accidental antennas. Art is wonderful, but a badge that looks amazing and immediately resets when touched is less wonderful.

Advanced Ideas for PCB Art In Eagle

Layered Shading

You can create subtle visual differences by using copper under solder mask, exposed copper, bare solder mask, and silkscreen. Even with one solder mask color, this can create multiple tones.

Two-Sided Artwork

Use both top and bottom layers for reversible badges, jewelry, or business cards. Just remember that bottom-side artwork is mirrored during design, so check orientation carefully.

Functional Art

Add LEDs, touch pads, capacitive sensors, or simple microcontroller circuits to your artwork. A PCB moon that glows, a cat badge with LED eyes, or a keyboard-shaped business card can be both attractive and useful.

Panelized Mini Art

Small PCB charms, earrings, and collectibles can be panelized, but check whether your manufacturer allows custom panelization, mouse bites, V-cuts, or tabs. Decorative boards often have unusual shapes, and not every panel process loves unusual shapes.

Experiences and Lessons Learned From Doing PCB Art In Eagle

The first real lesson of PCB art is that the screen lies politely. Inside EAGLE, your artwork may look crisp, centered, and heroic. Then the physical board arrives, and you discover that a silkscreen line you thought was “minimalist” was actually “nearly fictional.” This is why experienced designers exaggerate important details. Thick lines, clear spacing, and simplified shapes almost always look better after manufacturing than delicate artwork that barely meets the minimum specification.

Another useful experience is to design with the fabrication process in mind, not just the software. EAGLE lets you draw almost anything, but the board house has drills, routers, registration tolerances, ink limits, and plating behavior. A copper feature may look perfectly aligned with a solder mask opening in the file, but real solder mask can shift slightly. That tiny shift is normal. The solution is not panic; the solution is generous artwork. Give exposed copper features enough room to breathe.

Importing bitmap graphics can also teach patience. The import-bmp tool is powerful, but it can create very complex geometry if the image has too many pixels or colors. Huge imports can make the board file slow and hard to edit. A better workflow is to simplify the image before importing. Convert it to clean black-and-white shapes, resize it near the final dimensions, and remove tiny islands. If the design looks like digital sand, clean it before EAGLE has to deal with it.

Layer discipline matters more than beginners expect. One reliable habit is to create a checklist: Dimension for outline, Top and Bottom for copper, tStop and bStop for mask openings, tPlace and bPlace for silkscreen, Milling for slots, and Document for notes. Before exporting, turn on only one layer group at a time and inspect it. This simple practice catches many errors, especially artwork accidentally left on a non-manufacturing layer.

Color expectations deserve caution too. PCB colors are not the same as web colors. Purple solder mask, black solder mask, white solder mask, and blue solder mask all interact differently with copper and silkscreen. White silkscreen may appear bright on dark boards but subtle on light boards. Exposed copper with ENIG can look beautifully gold, but copper under solder mask is more muted. If color is critical, order samples or look at real photos from the same manufacturer.

Finally, the best PCB art usually has a reason behind it. It might tell a joke, support a brand, celebrate a project, or make a functional device more delightful. A good design does not simply throw graphics onto a circuit board. It uses the board’s physical nature as part of the idea. Copper becomes jewelry. Vias become stars. Pads become eyes. The board outline becomes a character. That is when PCB art stops being decoration and starts feeling intentional.

The most satisfying moment is opening the package from the fab house. There is nothing quite like seeing digital artwork transformed into a small, rigid, manufactured object. It feels like your computer doodle went to engineering school and came back with a shiny finish. Sometimes you will spot mistakes. That is normal. PCB art improves through revisions, and every board teaches something useful for the next one.

Conclusion

Learning how to do PCB art in Eagle is really learning how to think like both an artist and a manufacturer. EAGLE gives you control over the layers, but the beauty comes from understanding what those layers become in the real world. Silkscreen is ink. Copper is metal. Solder mask is color and protection. Board outlines are physical shape. Once you see those layers as creative materials, PCB design becomes much more playful.

Start simple, use bold shapes, respect manufacturing limits, check every layer, and always review your Gerber files before ordering. Whether you are making a badge, logo, jewelry piece, conference giveaway, or functional gadget, PCB art in Eagle can turn an ordinary circuit board into something people actually want to look at before asking, “Wait, does it also light up?”
